Manual Included:

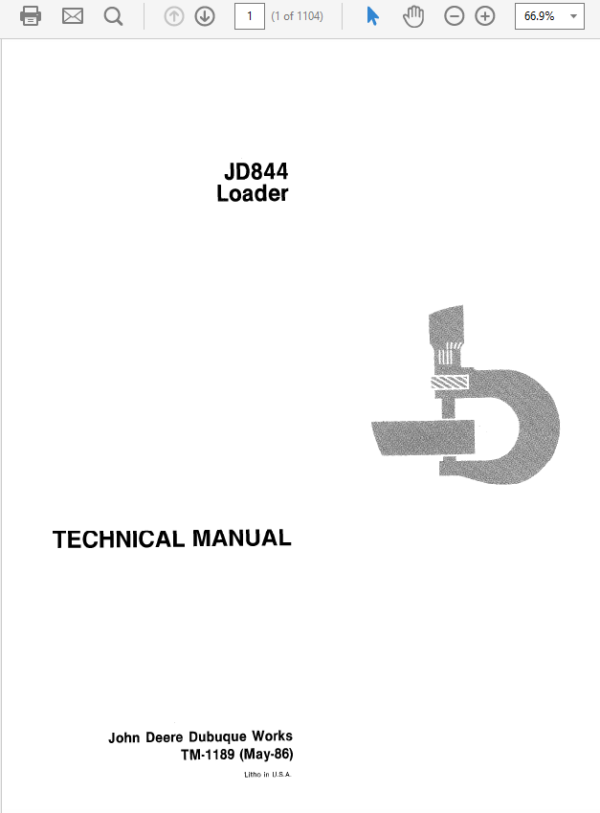

- Technical Manual: 1104 Pages
Specifications:
- Brand: John Deere
- Model: 844
- Type: Loader
- Manuals: Technical Manual
- Publication Numbers: TM1189
- Language: English
- Format: PDF
Maximize the operational efficiency and structural integrity of your loader with this professional guide to the John Deere Technical Repair Manual. This specialized resource is engineered for master technicians, providing high-precision specifications, detailed teardowns, and assembly protocols required for complex machine overhauls and system restorations.
John Deere Wheel Loader Manuals
John Deere Loader Repair & Diagnostic Master | Technical Service Guide
| Section / Group | Component System | Technical “Hot Data” for Mechanics (Repair Focus) |
|---|---|---|
| I: General | Information | Master Benchmarks: Critical torque charts, fluid capacities, and model-specific lubricant viscosities. |
| 1: Wheels | Fastenings | Drive Integrity: Lug nut torque sequences and hub-to-axle seating tolerances for heavy-duty operation. |
| 2: Axles | Driveline & Susp. | Power Delivery: U-joint phasing, planetary gear backlash, and axle bearing preload adjustments. |
| 3: Transmission | Power Shift & Gears | Internal Rebuild: Clutch pack clearance measurements, gear tooth contact patterns, and control valve PSI. |
| 4/5: Engine | Auxiliary Systems | Power Efficiency: Radiator pressure limits, cold-start aid diagnostics, and fuel lift pump priming. |
| 6: Torque Conv. | Turbine & Shafts | Fluid Coupling: Stator one-way clutch testing and turbine shaft end-play specifications. |
| 9: Steering | Hydraulic System | Response Control: Steering orbitrol relief settings and cylinder piston seal stack heights. |
| 10: Brakes | Service Systems | Stopping Power: Brake disc wear limits, master cylinder bleeding, and hydraulic actuator stroke. |
| 15: Attaching | Equipment Interface | Load Integrity: Pivot pin wear tolerances and high-stress attachment point inspections. |
| 16: Electrical | Systems & Wiring | Circuit Logic: Charging system benchmarks, wiring harness routing, and controller continuity testing. |
| 17/18: Frame/Station | Structure & Cab | Chassis & Comfort: Articulation joint play, A/C refrigerant charge, and ROPS structural inspection. |
| 19/20: Styling | Sheet Metal & Safety | Enclosures: Engine hood latch adjustments and warning device (horn/alarm) circuit diagnostics. |
| 31: Loader | Bucket & Frames | Front-End Duty: Pin/bushing wear limits, loader frame alignment, and lift cylinder benchmarks. |
| 90: Testing | System Analysis | Advanced Diagnostics: Systematic failure analysis and full-scale operational pressure testing. |
Strategic Repair Solutions: John Deere Professional Engineering Standards
This Technical Manual is the definitive authority for high-level mechanical repair and systematic troubleshooting. Unlike basic guides, this manual provides deep-dive data into Power Shift Clutches, Axle Reduction Gears, and Main Hydraulic Systems, ensuring that every repair meets original OEM factory standards to minimize downtime and prevent costly project delays.
Key Technical Advantages for Shop Professionals:
- Precision Rebuilds: Detailed tolerances for Gears, Shafts, and Bearings reduce the risk of premature component failure after a full teardown.
- Rapid Failure Identification: Section 90 allows for a “test-before-teardown” approach, using pressure and flow benchmarks to isolate hydraulic and mechanical faults.
- Structural Integrity: Comprehensive coverage of Frame and Chassis ensures the machine maintains its balance and original lifting capacity.
