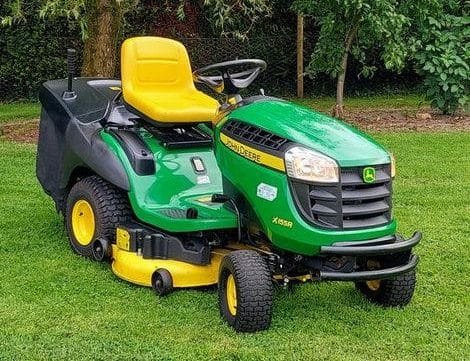

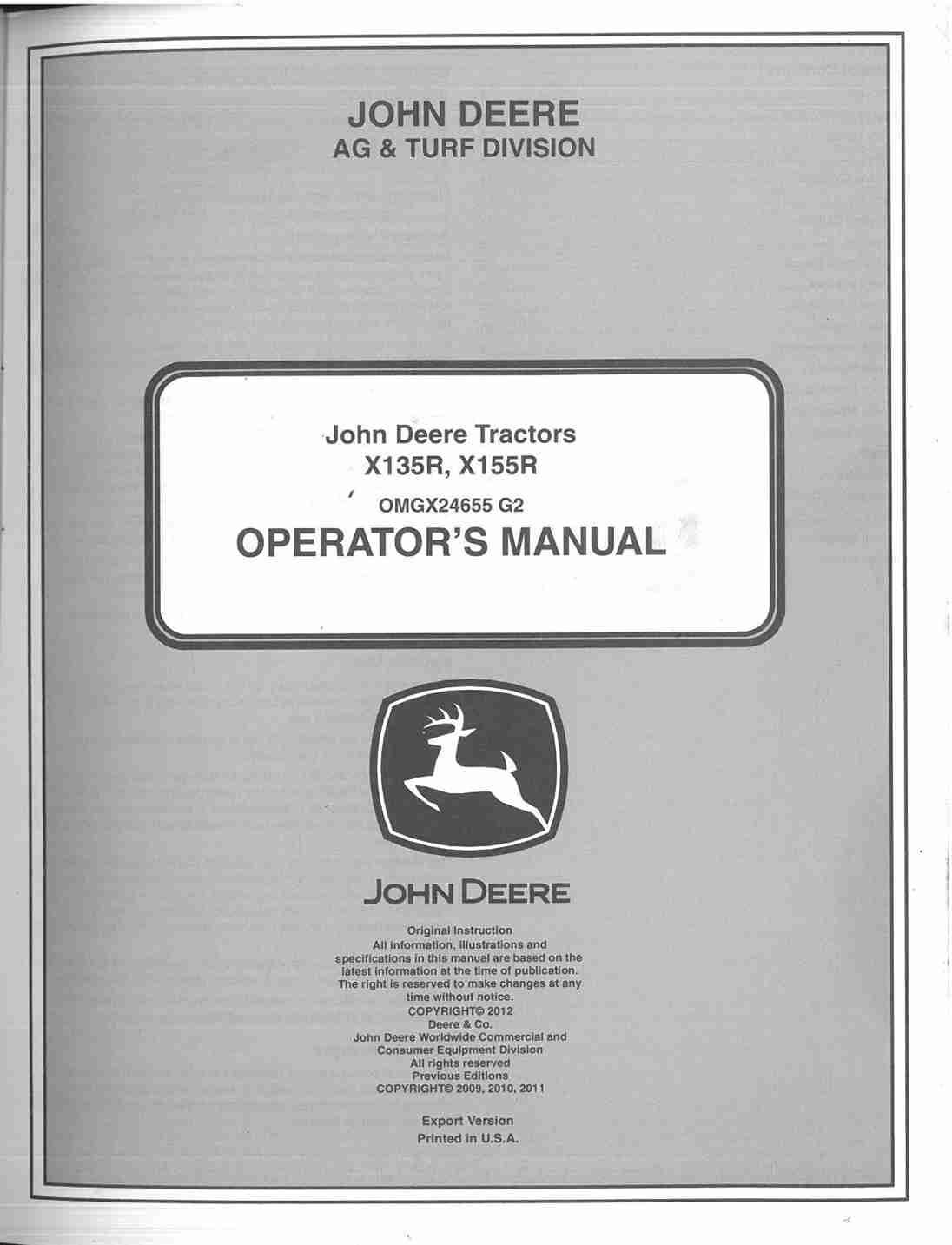

John Deere X135R X155R Tractor Operator’s Manual
John Deere X115r X135r X155r 92h 107h Service Repair Manual
John Deere X135R Engine
11.8HP Briggs & Stratton 655cc 2-cyl gasoline
X100 Series
Rear-discharge mower
Dimensions
Wheelbase: 48.3 inches 122 cm
Width: 37.8 inches 96 cm
Height: 42.5 inches 107 cm
Weight: 514 lbs 233 kg
John Deere X135R Tires
Lawn/turf front: 15×6-6
Lawn/turf rear: 18×8.5-8
Engine Detail
Briggs & Stratton
gasoline
2-cylinder
air-cooled vertical-shaft
Displacement: 655 cc
40 ci
Bore/Stroke: 2.97×2.89 inches
75 x 73 mm
Power (gross): 11.8 hp
8.8 kW
Rated RPM: 3150
Starter: electric
Starter volts: 12
Mechanical
Chassis: 4×2 2WD
Steering: manual
Cab: Open operator station.
Transmission: hydrostatic
Transmission
Transmission: Tuff Torq K46CY
Type: belt-driven hydrostatic
Gears: infinite forward and reverse
Oil change: sealed unit, service not recommended
Horsepower and engine specs
Engine size 655 cc or 40 ci
Number of cylinders, 2 cylinders
Horsepower –
Power RPM 3150 (rpm)
Engine torque –
Engine torque RPM
Fuel type
Fuel tank capacity 2 gal 7.6 L
Bore stroke 2.97×2.89 inches 75 x 73 mm
