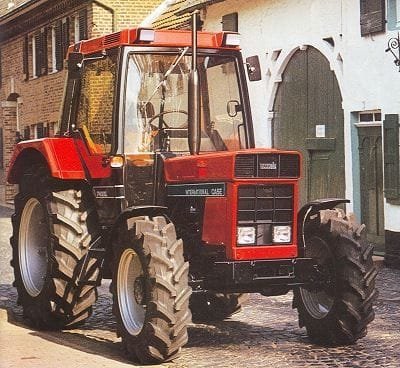

Case Ih 743xl Tractor Service Repair Workshop Manual
$45.00
Complete factory workshop service and repair manual for the Case IH 743XL tractor. This comprehensive PDF guide covers engine, transmission, hydraulics, electrical systems, and diagnostics with detailed diagrams and step-by-step procedures. Instant download, searchable, and printable.
Case Ih 743xl Tractor Service Repair Workshop Manual
This is the complete workshop service and repair manual for the Case IH 743XL tractor. Whether you are a professional technician, a workshop owner, or a tractor owner performing maintenance, this manual provides every detail you need to keep your machine operating at peak performance.
The manual covers the 743XL model extensively, with high-quality illustrations, exploded diagrams, and clear instructions for service, repair, and diagnostics. It is the most cost-effective way to maintain your tractor and avoid expensive downtime.
Case IH 743XL Technical Specifications (Reference)
| Brans | Case |
|---|---|
| Engine model | D-239 |
| Engine type | 4-cylinder diesel, naturally aspirated |
| Displacement | 3,911 cm³ |
| Bore x stroke | 98.4 × 128.5 mm |
| Rated power | 67 hp (50 kW) @ 2300 rpm |
| Torque | 235 Nm @ 1600 rpm |
| Transmission | 16 forward + 8 reverse, synchronized |
| Max speed | 30 km/h (40 km/h from late 1986) |
| Hydraulic flow | 33 L/min |
| Hydraulic pressure | 167 bar |
| Rear lift capacity | 3,150 kg |
| PTO speed | 540 rpm |
| Brakes | Wet disc |
| Steering | Hydrostatic power |
| Wheelbase (2WD) | 239 cm |
| Weight | 3,460 kg (without attachment) |
| Front tires (2WD) | 7.50-16 |
| Rear tires (2WD) | 16.9R30 |
Case IH 743XL Tractor – Workshop Service Repair Manual
Service Manual Contents
This workshop manual contains comprehensive sections covering every major system of the Case IH 743XL:
Engine Service
Basic engine – D-239 and related D-series engines
Cylinder head, valves, and timing
Pistons, liners, and crankshaft
Lubrication system
Cooling system
Fuel System & Turbochargers
Fuel system components and adjustments
Injection pump service
Turbocharger (where applicable)
Electrical Equipment
Battery, starter, and alternator
Wiring harness and components
Center Mechanical Front Drive switches and controls
Steering
Hydrostatic steering system
Center Mechanical Front Drive steering cylinder
Power Train
Transmission (743XL, 745XL, 844XL, 856XL)
Center Mechanical Front Drive axle and shaft
Differential and final drives
Hydraulics
Hydraulic pump and valves
Lift controls and draft sensing
Remote valves and SCV
Brakes
Wet disc brake service and adjustment
Cab and Operator Station
Control Center components
Access and adjustments
Content structure based on the comprehensive B-Family service manual covering 743XL through 1056XL models
