Kobelco SK30SR-2 SK35SR-2 Excavator Engine Parts Manual
d Repair Manual for Kobelco SK30SR-2 SK35SR-2 Mini Excavator
File Format: PDF
Compatible: All Versions of Windows & Mac, APP ISO, iPhone, iPod, Android, etc
Language: English
Requirements: Adobe PDF Reader
This is the Original Equipment Manufacturer Parts Manual Hydraulic Excavators & 3TNE82A-YBC 3TNE82A-YBD Engine Parts Manual Download ever compiled by mankind.
Kobelco SK30SR-2 SK35SR-2 Excavator Engine Parts Manual
Applicable NO. Model Covers:
Kobelco SK30SR-2 PW08-20001
Kobelco SK35SR-2 PX09-08001
Kobelco SK30SR-2 SK35SR-2 Parts Catalog Manual Overview

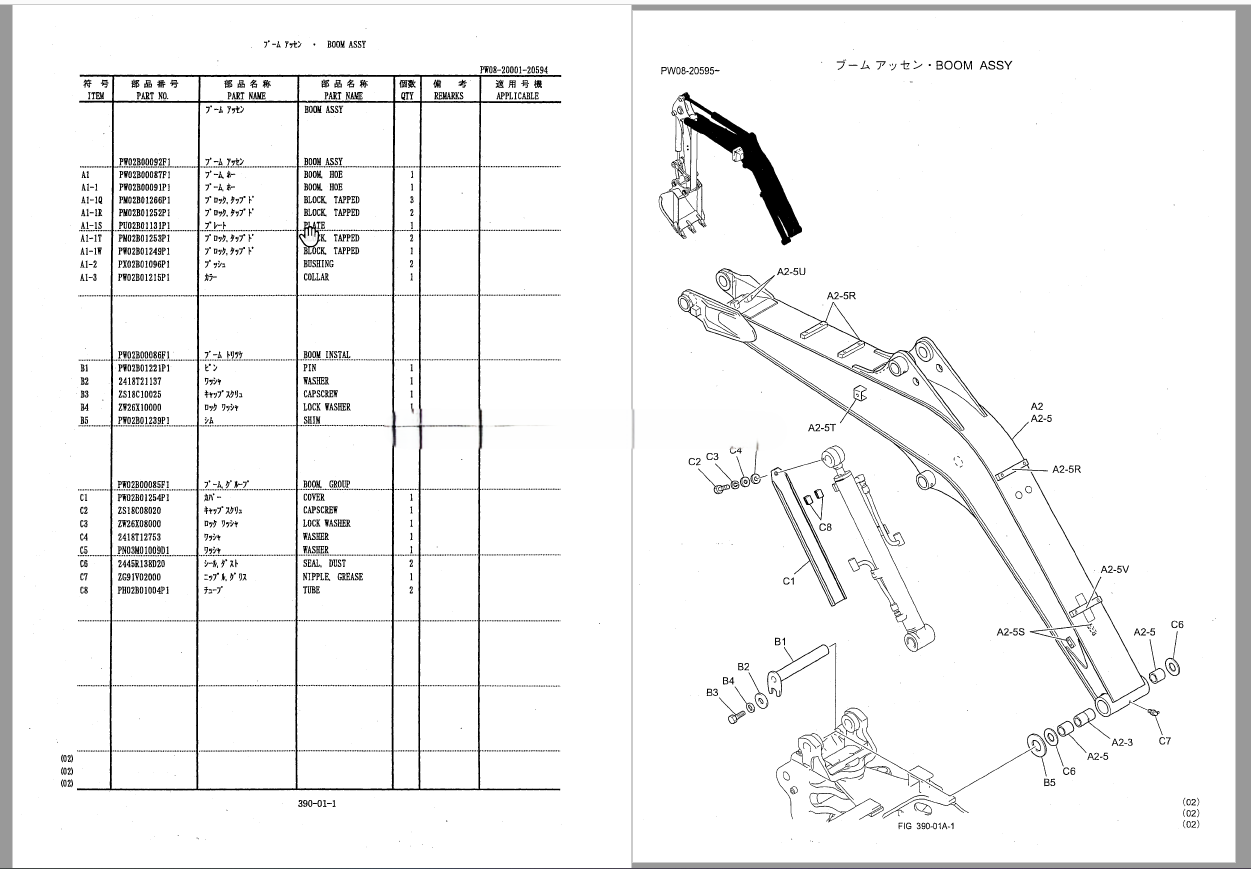

The Kobelco SK30SR-2 and SK35SR-2 Parts Manual PDF is an essential reference guide for technicians, equipment owners, workshop mechanics, and construction fleet managers who need precise component identification, exploded diagrams, and OEM replacement part numbers for these compact excavators.
This digital parts catalog delivers a structured breakdown of every mechanical, hydraulic, electrical, and structural component installed on the Kobelco mini excavators. Whether servicing the undercarriage, boom assembly, engine systems, or hydraulic pumps, this manual provides immediate access to factory-level parts information.
Compatible Models Covered
This parts manual includes complete catalog support for the following mini excavators:
- Kobelco SK30SR-2 Mini Excavator
- Kobelco SK35SR-2 Mini Excavator
These models are widely used in:
- Residential construction
- Landscaping operations
- Utility trenching
- Demolition projects
- Urban excavation jobs
- Agricultural land preparation
Because of their compact radius and efficient hydraulic systems, accurate parts identification is critical during repairs and scheduled maintenance.
What Is Included in the Kobelco SK30SR-2 SK35SR-2 Excavator Engine Parts Manual
This PDF catalog is professionally organized by systems and assemblies.
1. General Information Section
Includes:
- Machine identification information
- Serial number references
- Product structure overview
- Model designation breakdown
- Parts ordering instructions
2. Engine System Components
Detailed engine parts diagrams include:
- Cylinder block assemblies
- Pistons and rings
- Crankshaft components
- Camshaft assemblies
- Fuel injection parts
- Intake manifold
- Exhaust manifold
- Cooling fan
- Water pump
- Alternator
- Starter motor
- Oil pump assemblies
3. Hydraulic System Parts Breakdown
The hydraulic section is one of the most critical areas covered.
Includes:
- Main hydraulic pump
- Control valve assemblies
- Hydraulic cylinders
- Swing motor
- Travel motor
- Pilot valve system
- Hydraulic hoses
- Pressure lines
- Return lines
- Filters
- Tank components
Hydraulic schematics help locate and identify:
- Seal kits
- O-rings
- Pressure relief valves
- Spool valves
- Connector fittings
Boom, Arm, and Bucket Assemblies
The attachment section contains exploded diagrams for:
- Boom structure
- Arm assemblies
- Bucket linkage
- Pins and bushings
- Bucket cylinders
- Quick coupler parts
- Grease fittings
- Side cutters
- Teeth adapters
This section is valuable for rebuilding worn excavation attachments.
Swing and Travel System Components
Includes parts listings for:
Swing System
- Swing bearing
- Swing motor
- Swing gearbox
- Swing pinion
- Brake assemblies
Travel System
- Final drive
- Sprockets
- Track rollers
- Carrier rollers
- Idlers
- Track chains
- Rubber tracks
- Tension adjusters
Electrical System Parts Catalog
Electrical diagrams cover:
- Main wiring harness
- Fuse box
- Relays
- Instrument panel
- Sensors
- Ignition switch
- Safety switches
- Lights
- Battery cables
- Control modules
This section simplifies troubleshooting electrical faults and circuit replacement.
Cab and Operator Station Parts
Includes operator platform components such as:
- Seat assembly
- Safety belt
- Joystick controls
- Pedals
- Covers and panels
- Floor plates
- Levers
- Monitor assemblies
- Interior trim components
Chassis and Frame Components
Structural sections include:
- Main frame
- Counterweight
- Side covers
- Engine hood
- Access doors
- Mounting brackets
- Hardware kits
- Protective guards
Advantages of Using the Official Kobelco Parts Manual
Using the factory parts catalog improves repair accuracy and reduces downtime.
Key Benefits
- Correct OEM part numbers
- Fast parts lookup
- Exploded assembly diagrams
- Clear system indexing
- Easy PDF search functionality
- Printable workshop pages
- Reduced ordering errors
This manual is especially valuable when sourcing:
- Hydraulic seal kits
- Engine rebuild parts
- Travel motor components
- Electrical connectors
- Undercarriage replacement parts
Manual Format and Delivery
The parts manual is delivered as:
- Instant PDF download
- High-resolution searchable file
- Compatible with:
- Windows
- Mac
- Tablet
- Smartphone
- Workshop computers
