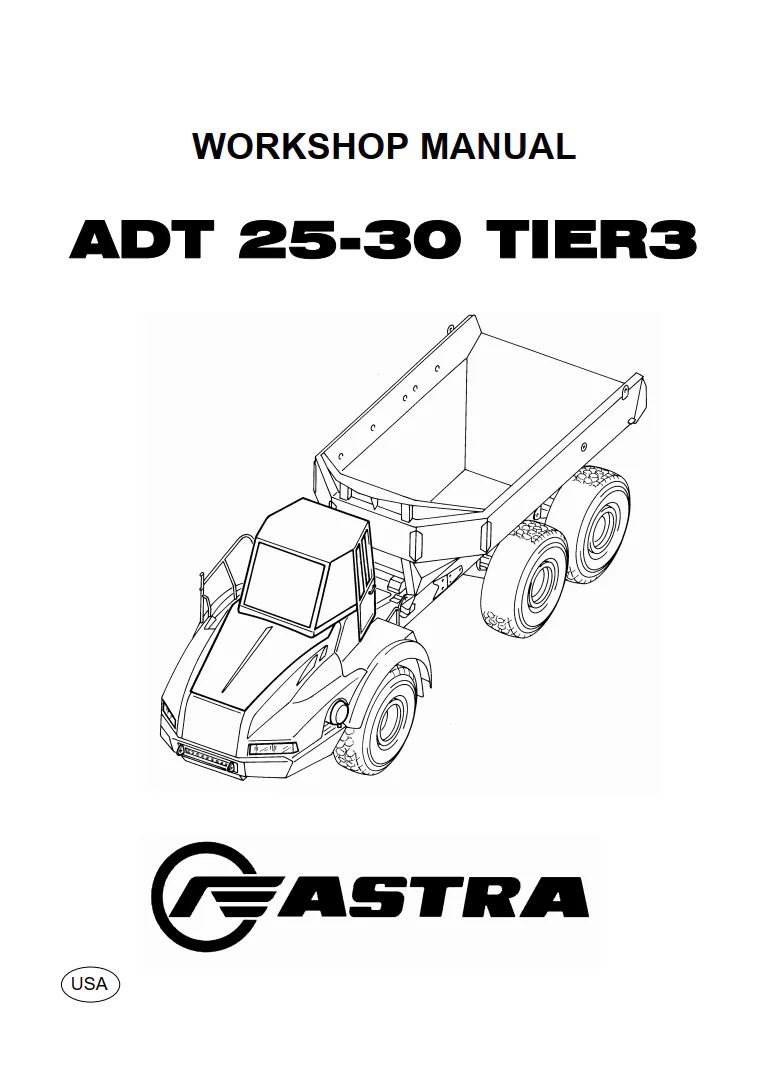

Astra ADT 25-30 Articulated Dumper TIER3 Workshop Manual
This technical handbook contains a series of repair procedures relating to the articulated dump trucks.
This handbook is an integral part of the vehicle. It is provided with the vehicle and must be kept with the vehicle for future reference until scrapping.
Read this handbook carefully before using the vehicle. Safe running and long life of your vehicle will depend on the observance of the rules suggested in this issue.
Handbook is this WORKSHOP MANUAL.
The vehicle is the machinery described in this manual. The manufacturer is the company manufacturing the vehicle. The dealership is the company or organization officially representing the Manufacturer.
Supplier is any company supplying components and/ or consumable material used by the vehicle.
User is the person directly or indirectly involved in repairing the vehicle.
Astra ADT 25-30 Articulated Dumper TIER3 Workshop Manual
INTRODUCTION from I to VIII
CONDITIONS OF USE AND
SAFETY INSTRUCTIONS 1 from 1 to 34
TECHNICAL DATA — ADT 25 2 from 1 to 34
TECHNICAL DATA — ADT 30 2 from 1 to 34
FAULT CODES 3 from 1 to 46
ENGINE 4 from 1 to 160
AUTOMATIC TRANSMISSION 5 from 1 to 120
FRONT AXLE — DISC BRAKES 6.1 from 1 to 78
FRONT AXLE — WET OIL 6.1 from 1 to 76
INTERMEDIATE AXLE — DISC BRAKES 6.2 from 1 to 72
INTERMEDIATE AXLE — WET OIL 6.2 from 1 to 70
REAR AXLE — DISC BRAKES 6.3 from 1 to 66
REAR AXLE — WET OIL 6.3 from 1 to 54
DRIVELINE 7 from 1 to 18
SUSPENSIONS 8 from 1 to 42
WHEELS AND TIRES 9 from 1 to 12
HYDRAULIC SYSTEM 10 from 1 to 152
ELECTRICAL SYSTEM 11 from 1 to 112
PNEUMATIC SYSTEM 12 from 1 to 20
GREASE SYSTEM 13 from 1 to 22
AIR CONDITIONING SYSTEM 14 from 1 to 28
CAB 15 from 1 to 22
CHASSIS 16 from 1 to 26
- Engine
- Suspension cylinder
- Front axle
- Transmission
- Articulation joint
- Intermediate axle
- Dumper cylinder
- Rear axle
- Body
- Cab
The information, descriptions, and illustrations in this handbook reflect the state of the art at the time of marketing of the vehicle.
The manufacturer reserves the right to implement changes to vehicles, for technical or marketing reasons, at any time. The manufacturer will not be obliged either to implement such changes in the vehicles marketed before or to consider this handbook obsolete.
Any additional information which the manufacturer may deem suitable to provide at a later time will be kept with the handbook as an integral part of the publication.
