JD 750J Crawler Dozer Operation and Test Manual TM10293
JD 750J Crawler Dozer Operation and Test Manual TM10293
- Manual Included:

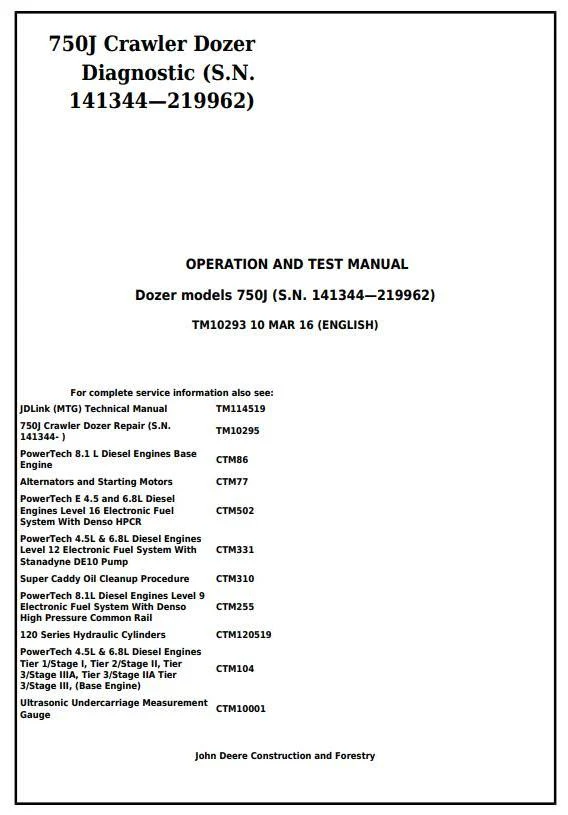

- Operation and Test Manual: 994 Pages (TM10293)
- Specifications:
- Brand: JD
- Model: 750J
- Serial Number: (PIN: 1TO750JX__ D141344–310257)
- Type: Crawler Dozer
- Manuals: Operation and Test Manual
- Publication Numbers: TM10293
- Language: English
- Format: PDF
Other Manual: JD 750J Crawler Dozer Repair Technical Manual (TM10295)
JD 750J Crawler Dozer Operation and Test Manual TM10293
| Section | Group | Diagnostic & Test Procedures |
|---|---|---|
| 9000 — General Information | Group 01 — Safety | Critical safety precautions for diagnostic and test procedures – machine preparation, lockout/tagout, hydraulic pressure release, and hazard awareness for JD equipment. |
| 9001 — Diagnostic Trouble Codes (DTC) | Group 10 — CAN Monitor Unit (CMU) Diagnostic Trouble Codes | Complete CMU fault codes – CAN bus communication errors, network failures, module diagnostics, and system logic faults. |
| Group 20 — Engine Control Unit (ECU) Diagnostic Trouble Codes | ECU DTC list – engine performance faults, emissions system errors, fuel system issues, sensor circuit failures, and injection system problems. | |
| Group 30 — Transmission Control Unit (TCU) Diagnostic Trouble Codes | TCU fault codes – shift solenoid failures, pressure sensor errors, speed sensor issues, clutch control problems, and transmission communication faults. | |
| Group 40 — Electrohydraulic Controller (EHC) Diagnostic Trouble Codes | EHC fault codes – electrohydraulic control system errors, proportional valve failures, implement management faults, and feedback sensor issues. | |
| Group 50 — Blade Control Joystick (BCJ) Diagnostic Trouble Codes | BCJ fault codes – joystick button failures, position sensor errors, potentiometer issues, and module communication faults. | |
| 9005 — Operational Checkout | Group 10 — Operational Checkout Procedure | Step-by-step machine checkout before diagnosis – verify symptoms, system readiness, baseline performance testing, and operational validation procedures. |
| 9010 — Engine | Group 05 — Theory of Operation | How the engine works – combustion cycle, lubrication flow, cooling system operation, electronic control system functions, and sensor inputs. |
| Group 15 — Diagnostic Information | Engine symptom charts, fault code explanations, guided diagnostic flowcharts, component testing procedures, and live data interpretation. | |
| Group 25 — Tests | Compression test procedures, fuel pressure testing, cylinder balance test, leak-down test, and injector performance checks. | |
| 9015 — Electrical System | Group 05 — System Information | Battery testing, alternator output specifications, starter current draw, wiring harness routing, fuse ratings, relay functions, and ground path verification. |
| Group 10 — System Diagrams | Complete electrical schematics and wiring diagrams – color-coded circuits, connector locations, splice points, and component pinouts. | |
| Group 15 — Sub-System Diagnostics | Starting system diagnostics, charging system tests, lighting circuit troubleshooting, sensor testing, display unit verification, and CAN bus diagnostics. | |
| Group 20 — References | Connector pinout diagrams, fuse box layouts, relay location charts, wire color codes, component location guides, and electrical specifications. | |
| 9025 — Hydraulics | Group 05 — Theory | Hydraulic pump operation, control valve function, cylinder dynamics, priority flow distribution, load sensing principles, and hydraulic circuit schematics. |
| Group 15 — Diagnostic Information | Weak lift or tilt troubleshooting, system overheating diagnosis, aeration and cavitation issues, contamination analysis, and component wear patterns. | |
| Group 25 — Tests | Flow meter testing procedures, pressure gauge testing, cycle time measurement, leak detection, hydraulic efficiency tests, and temperature analysis. | |
| 9026 — Hydrostatic System | Group 05 — Theory of Operation | Hydrostatic drive principles – charge pump function, variable displacement pump operation, drive motor dynamics, and loop flushing. |
| Group 15 — Diagnostic Information | Loss of drive troubleshooting, system overheating diagnosis, cavitation issues, speed control problems, and noise diagnostics. | |
| Group 25 — Tests | Hydrostatic pressure test procedures, case drain flow measurement, charge pressure verification, and speed calibration tests. | |
| 9031 — Heating and Air Conditioning | Group 05 — Theory of Operation | HVAC refrigerant cycle, compressor clutch operation, condenser function, evaporator cooling, expansion valve operation, and cabin air distribution. |
| Group 15 — Diagnostic Information | No heat or no cool troubleshooting, weak airflow diagnosis, unusual noise detection, refrigerant leak finding, and climate control system faults. |
