Volvo Ew70 parts manual download
Volvo EW70 Parts Manual – the essential guide for maintaining and repairing your Volvo EW70 excavator. This comprehensive manual provides detailed information on all components, parts, and assemblies, helping you quickly identify the exact parts you need. Whether you’re a professional technician or a Volvo owner, this manual is designed to assist you in keeping your machine in top condition. Perfect for those searching for reliable, easy-to-follow information to ensure your Volvo EW70 operates smoothly and efficiently. Optimize your maintenance with this indispensable resource!
EW70 Volvo Compact Excavator – Electrical and Hydraulic Schematic Diagrams
Volvo Ew70 parts manual
Service Volvo Ew70 parts manual Covers:
01 General
02 Engine with Mounting and Equipment
03 Elect. System, Warning System, Information System, Instruments
04 Power Transmission
05 Brake
06 Steering
07 Frame, Wheel
08 Machinery House, Cab, Exterior Trim Parts Anywhere
09 Working Hydraulics, Servo Hydraulics
10 Mechanical Equipment, Attachment
11 Stabilizer
12 Unit, Digging
13 Miscellaneous
Volvo Ew70 Specs Parts Catalog Manual, Hydraulic power continuously adapted to suit the load : optimum use of the engine’s power.
COMPACT EXCAVATOR EW70: Volvo Ew70 parts manual

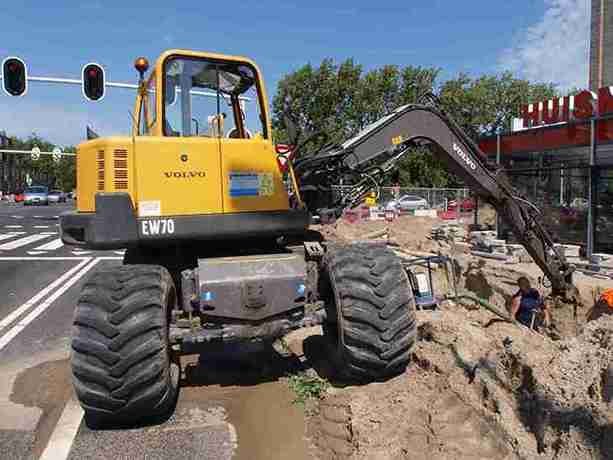

With its exceptional power and stability, and its extraordinary sturdiness, the wheeled Volvo EW70 works with maximum speed and efficiency on the most difficult sites. Its high degree of mobility, its remarkable quietness and its compact dimensions make it the ideal machine for all public works applications.
A Volvo tradition, this machine meets a strict specification with a single objective : to make a difference on the site. The wrap-around shape of the counterweight protects the back of the machine perfectly and makes it possible to work on the narrowest sites.
A unique feature : the quick coupling system, available as an option, enables a bucket or accessory to be changed without the operator leaving the cab. Appreciated by all users, this device saves a lot of time and increases comfort considerably without altering the bucket’s performances or sequence of operations.
All the hydraulic hoses are sheathed and free of any friction or wear and are connected at the bottom of the boom for rapid replacement, if necessary.
The boom is mounted on a double-swivel articulated pivot, which enables a long pin to be mounted and provides greater rigidity in the boom-chassis link. The boom cylinder’s rod is fully protected against any knocks by sturdy armoring.
Volvo Ew70 Specification Excavator Service Parts Manual
Very effective corrosion protection : all thanks to its compact dimensions and the boom’s hydraulic offset, the EW70 is at the nuts and bolts, the pins and the ease in all site configurations, even alongside a wall.
A unique feature : he radial piston slow slewing motor. This Volvo Ew70 parts manual have information about motor has a very high starting torque for flexible maneuvers, and drives the crown directly without a mechanical reducer. The result is fewer moving parts and therefore less risk of wear.
The automatic hydraulic brake integrated in the slewing motor immobilizes the turret in all positions and guarantees optimum working safety even on a slope.
The back cover opens completely, giving excellent access to the engine and hydraulic pumps. All maintenance and checking points are conveniently located close to hand.
Volvo Ew70 Specification Excavator Service Parts Manual
Exceptional precision of the controls, even with a large load : safety of handling work.
