Daewoo Doosan Dl400 Parts Manual
Daewoo Doosan Dl400, Home Spec Search All Types Wheel Loader, Doosan DL400. Doosan DL400 Wheel … Find a Doosan DL400 Wheel Loader being sold at Ritchie Bros.
Are you still worried about DAEWOO DOOSAN DL400 Rolled Loader failure? If so, I have here a Components Brochure manual you need to like it, it is a DAEWOO DOOSAN DL400 Rolled Loader Components Brochure guidebook electronically. It has a comprehensive understanding of DAEWOO DOOSAN DL400 Wheeled Loader parts, is the best partner for your work. Let me present you.
First Expert aspects. This DAEWOO DOOSAN DL400 Rolled Loader Components Brochure manual it found out is rich, which concentrates on every outline. The objective of this program is to give DAEWOO DOOSAN DL400 Wheeled Loader Components. It is useful, with the method of graphic, far better to show you the details of installation and also adjustment. It includes numerous elements.
Daewoo Doosan Dl400 Parts Manual
Service Parts Brochure Handbook Cover:

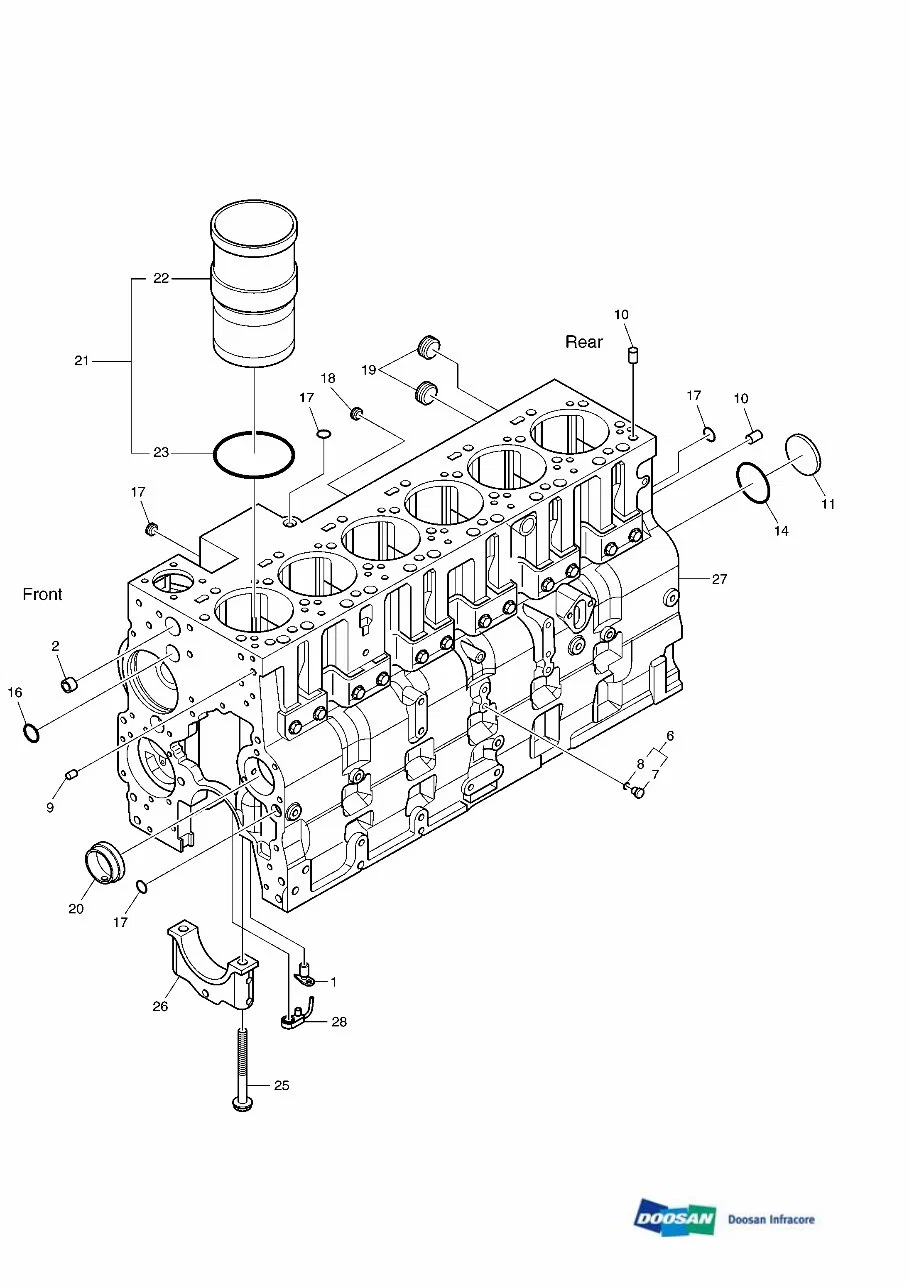

Engine Parts
Body Parts
Front Components
Hydraulic Components
Various other Components
Alternative Parts
File Style: PDF
Suitable: All Variations of Windows & Mac
Language: English
Demands: Adobe PDF Reader
Believe that if you have it, your DAEWOO DOOSAN DL400 Rolled Loader will be an excellent solution for you.
Second. The functional element If you missed out on the electronic DAEWOO DOOSAN DL400 Rolled Loader Service Components Catalog manual.
Maybe you will actually regret it, in the facet of knowledge, it’s every detail described obvious, and also it has several photos, words as well as photos, can let you know ways to repair.
It is like a detailed Service Components Catalog guidebook; however, it pertains to books, by contrast, is a lot more focused on the instant.
If your DAEWOO DOOSAN DL400 Rolled Loader on the website fell short, no person agrees to take a publication with you whatsoever times. The electronic handbook can assist you to repair, regardless of what time, regardless of what area, can be of service to you.
Specification
Engine
Make Cummins
Model QSL 9
Net Power 280 hp 208.8 kw
Gross Power 310 hp 231.2 kw
Power Measured @ 2000 rpm
Displacement 543 cu in (ca. 9 l)
Torque Measured @ 1400 rpm
Max Torque 1070.2 lb (0.49 t) ft 1451 Nm
Number of Cylinders 6
Aspiration turbocharged air-to-air intercooler
Operational
Fuel Capacity 96.4 gal (0.36 m³) 365 L
Hydraulic System Fluid Capacity 70 gal (0.26 m³)
Engine Oil Fluid Capacity 6.6 gal (ca. 25 l)
Cooling System Fluid Capacity 13.2 gal (ca. 50 l) 50 L
Transmission Fluid Capacity 14.3 gal (ca. 54 l) 54 L
Front Axle/Diff Fluid Capacity 11.9 gal (ca. 45 l) 45 L
Rear Axle/Diff Fluid Capacity 11.1 gal (ca. 42 l) 42 L
Operating Voltage 24 V
Alternator Supplied Amperage 70 amps
Rear Axle Oscillation 24 degrees
Tire Size 26.5-25-20PR-L3
Transmission
Type full power shift
Number of Forward Gears 4
Number of Reverse Gears 3
Max Speed — Forward 23.6 mph (ca. 38 km/h), 38 km/h
Max Speed — Reverse 17.4 mph (ca. 28 km/h), 28 km/h
Hydraulic System
Pump Type axial piston pump
Relief Valve Pressure 3625.9 psi, 25000 PA
Pump Flow Capacity 100.4 gal (0.38 m³)/min 380 L/min
Raise Time 6 sec
Dump Time 1.4 sec
Lower Time 3 sec
Bucket
Breakout Force, 49458 lb (ca. 22 t) kN
Dump Clearance at Max Raise 9.8 ft (ca. 3 m) in 2975 mm
Bucket Width 10.5 ft (3.2 m) in 3200 mm
Bucket Capacity — heaped 5.1 yd3 (ca. 4 m³) 3.9 m3
Dimensions
Length with Bucket on Ground 28.6 ft (ca. 9 m) in 8710 mm
Width Over Tires 9.8 ft (ca. 3 m) in 2985 mm
Height to Top of Cab 11.6 ft (3.54 m) in 3522 mm
Ground Clearance 1.7 ft (ca. 52 cm) in 510 mm
Wheelbase 11.5 ft (3.51 m) in 3500 mm
Hinge Pin — Max Height 14.3 ft (4.36 m) (4.36 m) in 4350 mm
Reach at Max Lift and Dump 9.8 ft (ca. 3 m) in 2975 mm
